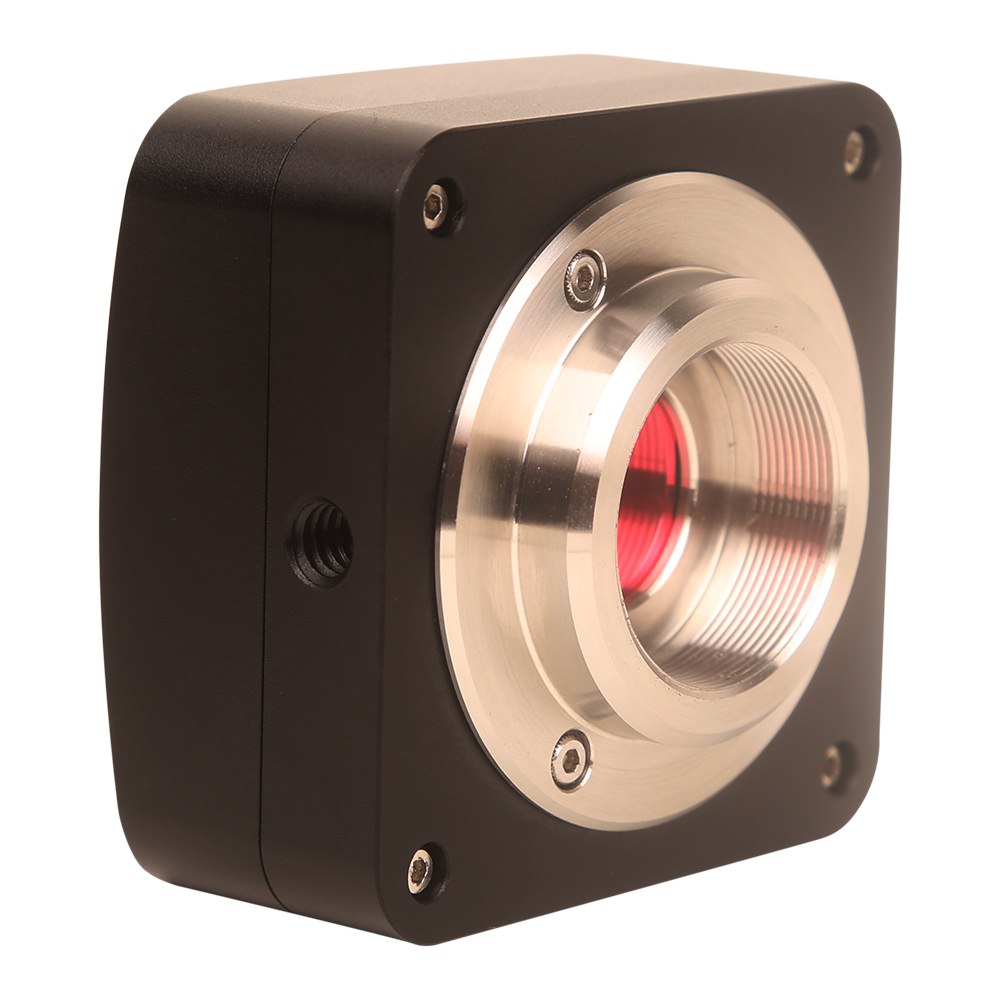

图谱光电 ToupTek UCMOS09000KPB CMOS相机
UCMOS系列相机是图谱光电设计的一种超高性能 USB2.0 与 CMOS 图像传感器相机( Ultra-high performance USB2.0 CMOS 相机)，采用 USB2.0 作为数据传输接口。
UCMOS系列相机速度中等，相机分辨率横跨 35 万~ 1400 万。
UCMOS系列显微相机随机提供高级视频与图像处理应用软件 ToupView/ToupLite ; 提供 Windows/Linux/maxOS/Android 多平台 SDK (原生 CC/C++, C#/VB.NET, Python, Java, DirectShow, Twain 等)。
UCMOS系列相机适合于显微镜照片的拍摄
详细参数
应用方向

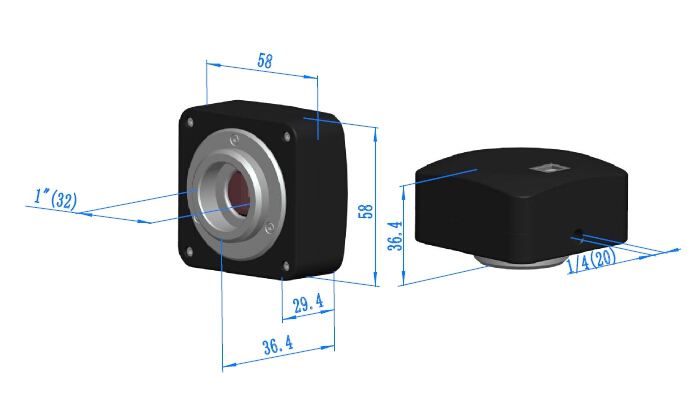

UCMOS系列相机外形尺寸
电话：0755-83512170；手机：13249819590；QQ:2577758288；邮箱：2577758288@qq.com
型号
传感器型号与尺寸(mm)
像素(μm)
G光灵敏度
动态范围
SN比
FPS/分辨率
采样平均
曝光时间
UCMOS14000KPA
14M/MT9F002(C)
1/2.3“(5.73x4.60)
1.4x1.4
0.724v/lux-sec
65.3dB
35.5dB
1.8@4096x3288
10@2048x1644
27@1024x822
1x1
2x2
4x4
0.4ms~2000ms
UCMOS12000KPA
12M/IMX577(C)
1/2.1“ (5.95x4.71)
1.55x1.55
250mv with 1/30s
0.25mv with 1/30s
3@3840x3040
11@1920x1516
47@960x758
1x1
2x2
4x4
0.4ms~2000ms
UCMOS10000KPA
10M/IMX577(C)
1/2.3“ (5.56x4.26)
1.55x1.55
250mv with 1/30s
0.25mv with 1/30s
3.3@3584x2748
12@1792x1374
53@896x684
1x1
2x2
4x4
0.4ms~2000ms
UCMOS09000KPB
9M/Special(C)
1/2.4“(5.41x4.05)
1.55x1.55
250mv with 1/30s
0.25mv with 1/30s
3.5@3488x2616
13@1744x1308
55@872x654
1x1
2x2
4x4
0.4ms~2000ms
UCMOS08000KPB
8M/Special(C)
1/2.5“(5.06x3.79)
1.55x1.55
250mv with 1/30s
0.25mv with 1/30s
4@3264x2448
15@1600x1200
62@800x600
1x1
2x2
4x4
0.4ms~2000ms
UCMOS05100KPA
5.1M/AR0521(C)
1/2.5“ (5.70x4.28)
2.2x2.2
18.8ke-/lux
73dB
40dB
7.0@2592x1944
27.7@1296x972
100.5@648x486
1x1
2x2
4x4
0.2ms~2000ms
UCMOS04100KPA
4.1M/IMX347(C)
1/1.8“ (7.795x4.408)
2.9x2.9
2376mv with 1/30s
0.15mv with 1/30s
8.5@2688x1536
11.5@2048x1536
15@1536x1536
34@1344x768
1x1
1x1
1x1
1x1
0.1ms~2000ms
UCMOS04100KPB
4.1M/IMX664(C)
1/1.8“ (7.795x4.408)
2.9x2.9
5970mv with HCG mode
0.13mv with 1/30s
8.5@2688x1520
34@1344x760
1x1
2x2
0.1ms~2000ms
UCMOS03100KPB
3.1M/IMX123(C)
1/2.8“ (5.12x3.84)
2.5x2.5
600mv with 1/30s
0.15mv with 1/30s
11.5@2048x1536
29.5@1024x768
1x1
2x2
0.2ms~2000ms
UCMOS01300KPA
1.23M/SC1235(C)
1/3“ (4.80x3.60)
3.75x3.75
4.5V/lux-sec
74dB
38dB
15@1280x960
15@1280x720
1x1
1x1
0.14ms~2000ms
型号
传感器型号与尺寸(mm)
像素(μm)
G光灵敏度
动态范围
SN比
FPS/分辨率
采样平均
曝光时间
