图谱光电 ToupTek MAX24AC 显微镜相机
型号
传感器型号与尺寸
像素(μm)
G光灵敏度
暗电流
动态范围/SNR
FPS/分辨率
位深度
采样平均
曝光时间
MAX62AM
61M/IMX455(M, RS)
2.7"(35.98x23.99)
Full Frame
3.76x3.76
871mv with 1/30s
0.039mv with 1/30s
88.3dB/47.1dB
6.1@9568x6380(16bit)
19.1@4784x3190
55.6@3184x2124
191@1040x706
8 Bit / 16 Bit
1x1
2x2
3x3
9x9
0.1ms~1000s
MAX62AC
61M/IMX455(C, RS)
484.5mv with 1/30s
85.8dB/47.0dB
MAX24AC
24M/IMX410(C, RS)
2.7"(36.02x24.00)
5.94x5.94
573mv with 1/30s
0.037mv with 1/30s
87.3dB/50.2dB
15.3@6064x4040(14bit)
41@3024x2012
114@2016x1342
8 Bit / 14 Bit
MAX04AM
4.2M/GSENSE2020e(M,NIR,RS)
1.2”(13.31x13.31)
6.5x 6.5
8.1x108 (e-/((W/m2).s))
Peak QE 64.2% @595nm
0.12(e-/s/pix) @-10C
81.6dB/46.5dB
45@2048x2048
45@1024 x 1024
8 Bit / HDR 16 Bit
MAX04BM
4.2M/GSENSE2020BSI(M,UV,RS)
6.5 x 6.5
1.1x108 (e-/((W/m2).s))
Peak QE 93.7% @550nm
0.15(e-/s/pix) @-15C
79.1dB/47dB
45@2048 x2048
45@1024 x1024
MAX04CM
4.2M/GSENSE400BSI(M,UV,RS)
2.0“(22.53x22.53)
11 x 11
3.25x108 (e-/((W/m2).s))
Peak QE 95.3% @560nm
1.5(e-/s/pix) @-10C
93.9dB/48.8dB
44@2048 x2048
44@1024 x1024
MAX 系列相机支持自由运行或触发操作模式，支持一次触发采集单张或多张图片。集成了高稳定性的工业级IO模块，可以跟多路外部设备同步，或多相机同步工作。

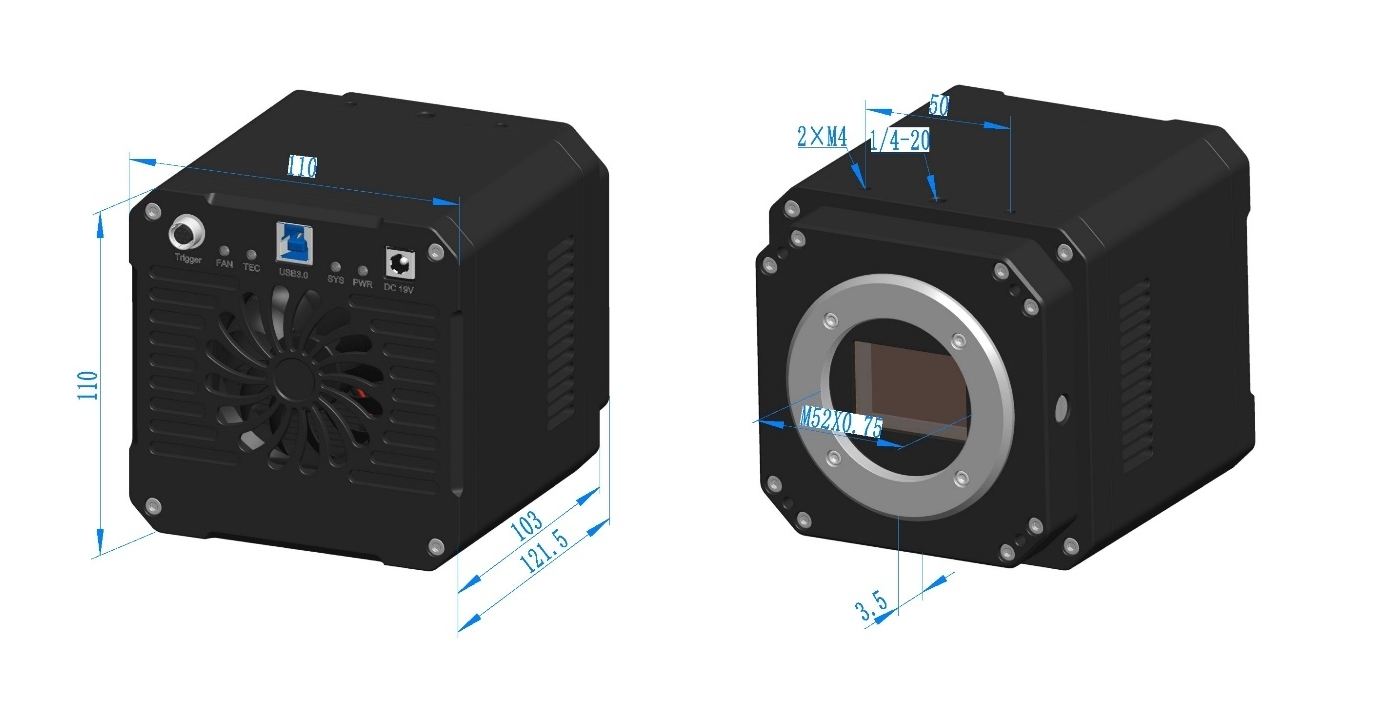

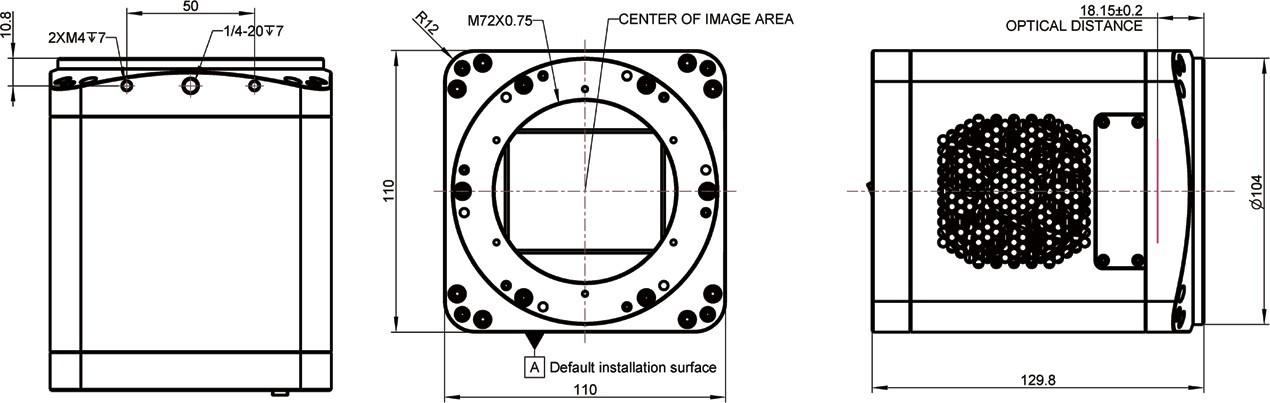

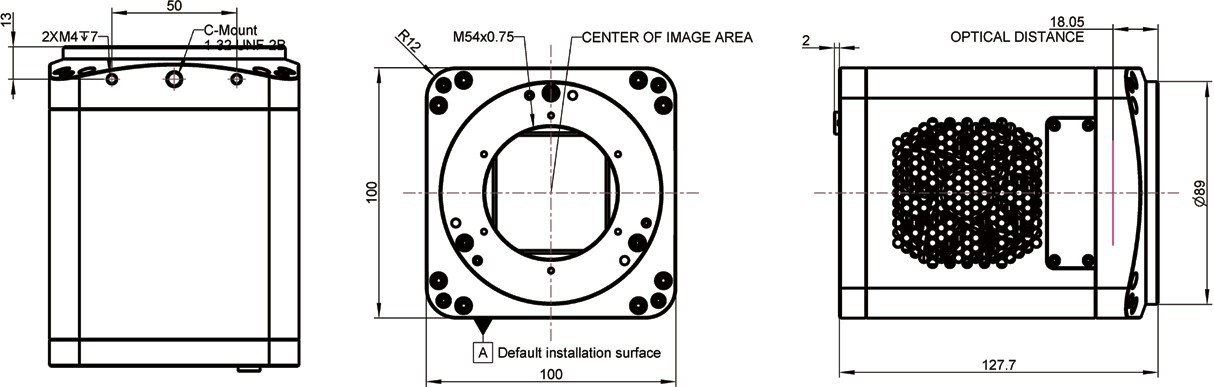

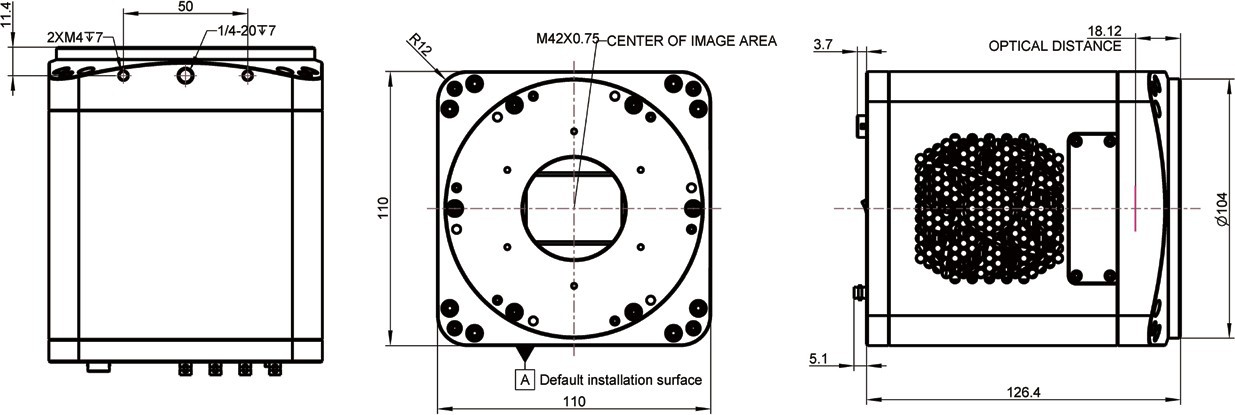

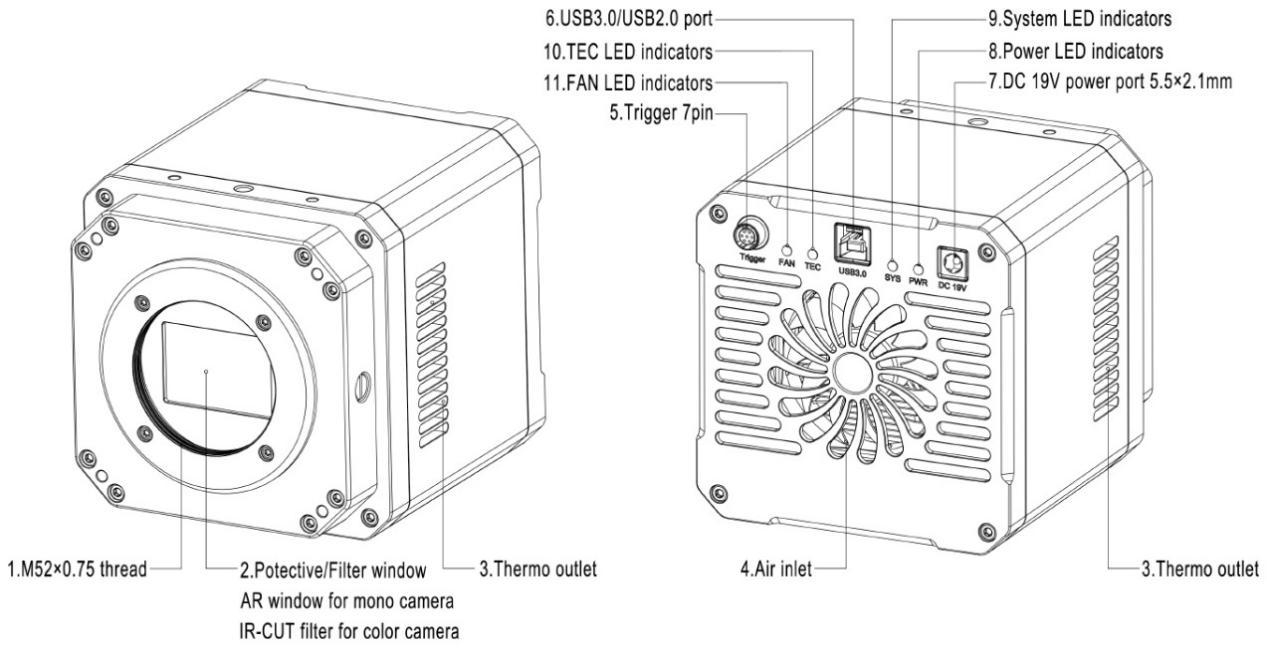

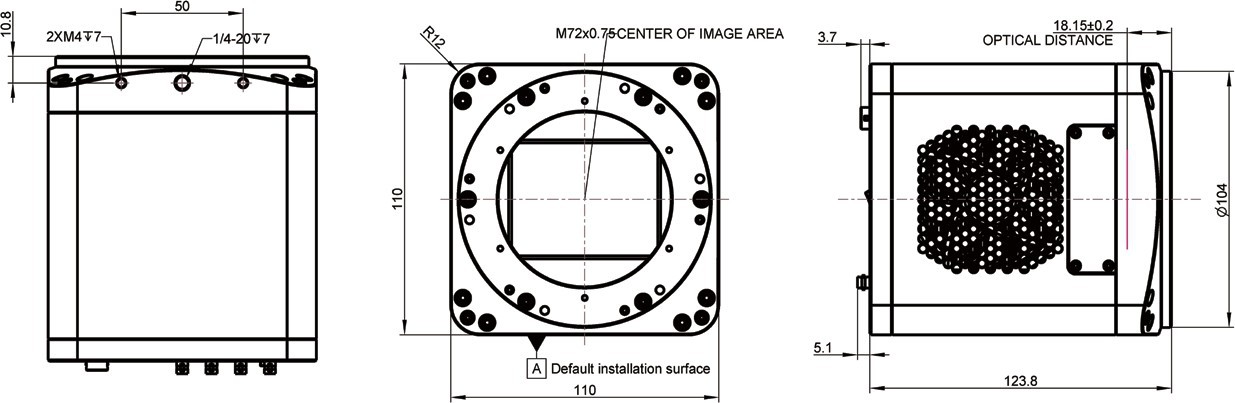

MAX 系列相机外形尺寸示意图。相机壳体由坚硬铝合金经CNC精密加工而成。相机传感器的前端安装有高品质的IR-CUT或双面AR保护玻璃，主要起到滤除成像中的红外光波，同时起到保护相机传感器芯片的作用。
相比其他品牌相机，图谱光电的TE制冷相机密封性好，相机散热风扇经减振以后，不会存在由于风扇抖动引发的成像模糊。
电话：0755-83512170；手机：13249819590；QQ:2577758288；邮箱：2577758288@qq.com
型号
传感器型号与尺寸
像素(μm)
G光灵敏度
暗电流
动态范围/SNR
FPS/分辨率
位深度
采样平均
曝光时间
MAX62AM
61M/IMX455(M, RS)
2.7"(35.98x23.99)
Full Frame
3.76x3.76
871mv with 1/30s
0.039mv with 1/30s
88.3dB/47.1dB
6.1@9568x6380(16bit)
19.1@4784x3190
55.6@3184x2124
191@1040x706
8 Bit / 16 Bit
1x1
2x2
3x3
9x9
0.1ms~1000s
MAX62AC
61M/IMX455(C, RS)
2.7"(35.98x23.99)
Full Frame
3.76x3.76
484.5mv with 1/30s
0.039mv with 1/30s
85.8dB/47.0dB
6.1@9568x6380(16bit)
19.1@4784x3190
55.6@3184x2124
191@1040x706
8 Bit / 16 Bit
1x1
2x2
3x3
9x9
0.1ms~1000s
MAX24AC
24M/IMX410(C, RS)
2.7"(36.02x24.00)
Full Frame
5.94x5.94
573mv with 1/30s
0.037mv with 1/30s
87.3dB/50.2dB
15.3@6064x4040(14bit)
41@3024x2012
114@2016x1342
8 Bit / 14 Bit
1x1
2x2
3x3
0.1ms~1000s
MAX04AM
4.2M/GSENSE2020e(M,NIR,RS)
1.2”(13.31x13.31)
6.5x 6.5
8.1x108 (e-/((W/m2).s))
Peak QE 64.2% @595nm
0.12(e-/s/pix) @-10C
81.6dB/46.5dB
45@2048x2048
45@1024 x 1024
8 Bit / HDR 16 Bit
1x1
2x2
0.1ms~1000s
MAX04BM
4.2M/GSENSE2020BSI(M,UV,RS)
1.2”(13.31x13.31)
6.5 x 6.5
1.1x108 (e-/((W/m2).s))
Peak QE 93.7% @550nm
0.15(e-/s/pix) @-15C
79.1dB/47dB
45@2048 x2048
45@1024 x1024
8 Bit / HDR 16 Bit
1x1
2x2
0.1ms~1000s
MAX04CM
4.2M/GSENSE400BSI(M,UV,RS)
2.0“(22.53x22.53)
11 x 11
3.25x108 (e-/((W/m2).s))
Peak QE 95.3% @560nm
1.5(e-/s/pix) @-10C
93.9dB/48.8dB
44@2048 x2048
44@1024 x1024
8 Bit / HDR 16 Bit
1x1
2x2
0.1ms~1000s
