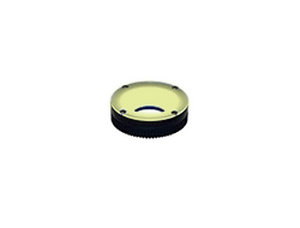

CCS希希爱视 HPR2-75FC 环形光源

CCS希希爱视 HPR2-75FC 环形光源

品牌 CCS希希爱视
型号 HPR2-75FC
产品详情

CCS希希爱视   HPR2-75FC   环形光源

LED发光颜色全色(红,绿,蓝色)
峰值发光波长Red: 622 nm typ., Green: 525 nm typ., Blue: 470 nm typ.

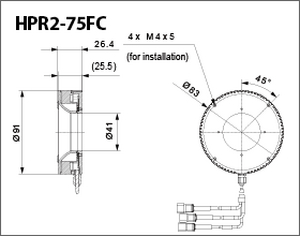

外观尺寸Outer diameter 91 mm, Inner diameter 41 mm, Height 26.4 mm
输入电压24VDC
消耗功率6.0 W max. (Red: 1.4 W, Green: 2.3 W, Blue: 2.3 W)
极性, 信号1: (+), 2: NC, 3: (-)
线缆长度300 mm
外壳材质Aluminum alloy, resin
输入端口SMR-03V-B x 3
适合规格CE, UKCA, RoHS, IEC 62471(Exempt)
使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式Natural air-cooling
重量160 g max.
附属品使用说明书
注意事项Cannot be used with the strobe control unit (overdrive mode).
