CCS希希爱视 HPD2-100SW 圆顶光源

CCS希希爱视 HPD2-100SW 圆顶光源

品牌 CCS希希爱视
型号 HPD2-100SW
产品详情


CCS希希爱视   HPD2-100SW    圆顶光源


LED发光颜色White
相关色温6,500 K typ.

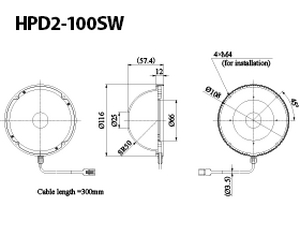

外观尺寸Outer diameter 116 mm, Inner diameter 66 mm, Height 57.4 mm
输入电压24VDC
消耗功率23 W max.
极性, 信号1: (+), 2: NC, 3: (-)
线缆长度300 mm
外壳材质Aluminum alloy, resin
输入端口SMR-03V-B
适合规格CE, UKCA, RoHS, IEC 62471(Low risk)
使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式Natural air-cooling
重量160 g max.
附属品使用说明书
备注CCS accepts special orders to change the shape of the camera-side opening to 30 mm square.
The height of this special ordered Dome Light is 56.7 mm.
