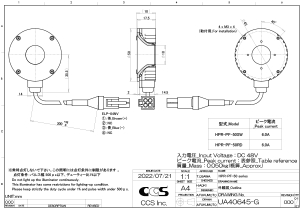

Outer diameter 50 mm, Inner diameter 18 mm, Height 18 mm
峰值电流
6.0 A
输入电压
48 VDC max.
极性, 信号
1: (+), 2: NC, 3: (-), 4: NC
线缆长度
300 mm
外壳材质
Aluminum alloy, resin
输入端口
ELP-04NV
适合规格
CE, UKCA, RoHS, IEC 62471（Exempt）
使用温湿度
Temperature: 0 to 40 °C, Humidity: 20 % to 85 %RH (with no condensation)
保存温湿度
Temperature: -20 to 60 °C, Humidity: 20 % to 85 %RH (with no condensation)
冷却方式
Natural air-cooling
重量
50 g
附属品
使用说明书
备注
Use the Light Unit within the lighting conditions (maximum strobe time: 500 μs, maximum duty cycle*: 1%). * The duty cycle is expressed by the following equation: Duty cycle (%) = 100 x Strobe time / Strobe cycle
