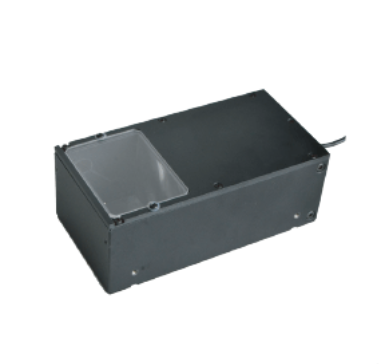

CCS希希爱视 MFU-54X40BL2-12 同轴光源

CCS希希爱视 MFU-54X40BL2-12 同轴光源

品牌 CCS希希爱视
型号 MFU-54X40BL2-12
产品详情

CCS希希爱视   MFU-54X40BL2-12    同轴光源

LED发光颜色Blue
峰值发光波长465 nm

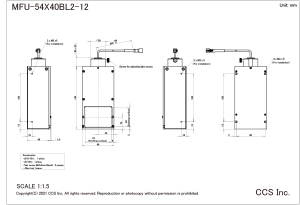

外观尺寸W 66 mm x D 150 to 183 mm x H 48 mm
输入电压12 VDC
消耗功率0.9 W max.
极性, 信号1: (+), 2: (-)
线缆长度300 mm
外壳材质Aluminum alloy, Steel sheet, Resin
输入端口SMR-02V-B
适合规格CE, UKCA, RoHS, IEC 62471(Exempt)
使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式Natural air-cooling
重量400 g max.
附属品Aperture (φ0.5 mm) x 1, Aperture (φ1.0 mm) x 1, Aperture (φ2.0 mm) x 1,
Set of screws (M2 x 2 mm black) x 3, M2 hexagonal wrench x 1
*An aperture (φ1.0 mm) is attached to the light source part when shipped from the factory.
*Replacing with one of the additional apertures supplied (φ0.5 mm and φ2.0 mm) allows the light quantity (high / low) and light distribution (wide / narrow) to be changed.
