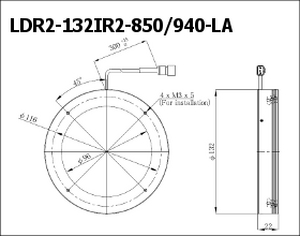

Outer diameter 132 mm, Inner diameter 96 mm, Height 22 mm
输入电压
24VDC
消耗功率
16 W max.
极性, 信号
1: (+), 2: NC, 3: (-)
线缆长度
300 mm
外壳材质
Aluminum alloy
输入端口
SMR-03V-B
适合规格
CE, UKCA, RoHS, IEC 62471（Exempt）
使用温湿度
Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度
Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式
Natural air-cooling
重量
270 g max.
附属品
使用说明书
注意事项
* This product uses infrared LEDs. You cannot visually sense the brightness, but infrared radiation comes out of the LEDs when they are on. * The peak wavelength range corresponds to IR-A (780 to 1,400 nm). * Infrared radiation in the IR-A range can damage your eyes. Never look at the infrared radiation directly. * Inform all persons in the area around this product of the dangers of infrared LED.
