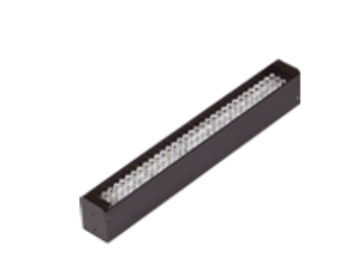

CCS希希爱视 LDL-130X15IR2-850 红外光源(1000nm以下)

CCS希希爱视 LDL-130X15IR2-850 红外光源(1000nm以下)

品牌 CCS希希爱视
型号 LDL-130X15IR2-850
产品详情


CCS希希爱视   LDL-130X15IR2-850   红外光源(1000nm以下)

LED发光颜色Infrared
峰值发光波长850 nm typ.

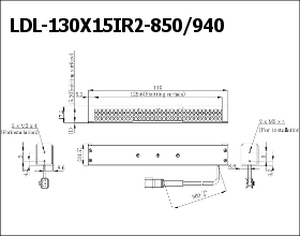

外观尺寸W 140 mm x D 17.2 mm x H 21.7 mm
输入电压24VDC
消耗功率6.1 W max.
极性, 信号1: (+), 2: NC, 3: (-)
线缆长度300 mm
外壳材质Aluminum alloy, POM, Steel sheet
输入端口SMR-03V-B
适合规格CE, UKCA, RoHS, IEC 62471(Exempt)
使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式Natural air-cooling
重量90 g max.
附属品使用说明书
注意事项* This product uses infrared LEDs. You cannot visually sense the brightness, but infrared radiation comes out of the LEDs when they are on.
* The peak wavelength range corresponds to IR-A (780 to 1,400 nm).
* Infrared radiation in the IR-A range can damage your eyes. Never look at the infrared radiation directly.
* Inform all persons in the area around this product of the dangers of infrared LED.
