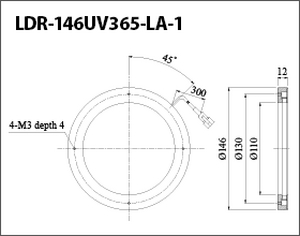

Outer diameter 146 mm, Inner diameter 110 mm, Height 12 mm
输入电压
24VDC
消耗功率
3.1 W (Earlier than July 2014) / 2.3 W (After July 2014)
极性, 信号
1: (+), 2: NC, 3: (-)
线缆长度
300 mm
外壳材质
Aluminum alloy
输入端口
SMR-03V-B
适合规格
CE, UKCA, RoHS, IEC 62471（Exempt）
使用温湿度
Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度
Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式
Natural air-cooling
重量
160 g max.
附属品
User Manual, Radiation aperture seal, UV DANGER seal
注意事项
* UV radiation is very harmful to the naked eye. * To avoid direct exposure to ultraviolet radiation, all workers around this product must use protective equipment. * Make known to all personnel concerned the risk of ultraviolet radiation. * Take sufficient safety precautions when handling the machinery and devices incorporating this product. * Please inquire if you would like to use in combination with a Strobe Control Unit (overdrive type).
