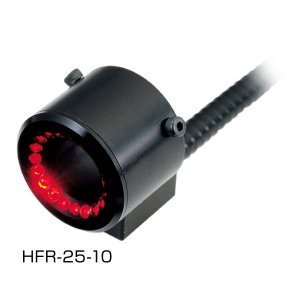

CCS希希爱视 HFR-25-10 微型光纤照射头

CCS希希爱视 HFR-25-10 微型光纤照射头

品牌 CCS希希爱视
型号 HFR-25-10
产品详情

CCS希希爱视   HFR-25-10   微型光纤照射头

LED发光颜色Depends on the light source sections

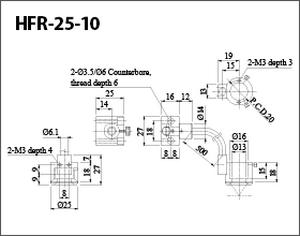

外观尺寸Tip outer diameter 25 mm, Tip inner diameter 13 mm
外壳材质Aluminum alloy
最小弯曲半径(参考值)30 mm
股线直径500 μm
透射波长400 to 700 nm
端面耐热温度70℃
开口数0.5
使用温湿度Temperature: 0 to 40℃, Humidity: 20 to 70%RH (No condensation)
保存温湿度Temperature: -10 to 60℃, Humidity: 20 to 70%RH (No condensation)
重量60 g max.
光纤材质Plastic
管状材质SUS
附属品Attached adaptor (AD-HF), Operation Guide
