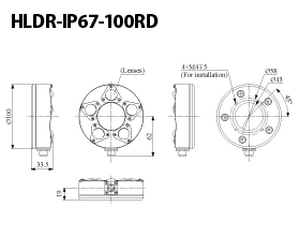

Outer diameter 100 mm, Inner diameter 43 mm, Height 35.5 mm
输入电压
24VDC
消耗功率
18 W max.
极性, 信号
1: (24+), 2: NC, 3: GND(-), 4: NC
外壳材质
Body: aluminum alloy (black anodized) Screws: SUS Washers: SUS, elastomer (TPE) Connectors: PA resin Lens: silicone
输入端口
XS2M-D423 (Manufactured by OMRON)
适合规格
CE, UKCA, RoHS, IEC 62471 (Exempt), IP67 (JIS C 0920)
使用温湿度
Temperature: 0 to 40℃, Humidity: 20 to 95%RH (No condensation)
保存温湿度
Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式
Natural air-cooling
重量
420 g max.
附属品
使用说明书
备注
When connected to a Dedicated Cable, this product has a protective structure of IP67 to prevent dust and water intrusion so that you can apply this product to wider range of environments than previous products. However, you cannot use this product in water continuously.
