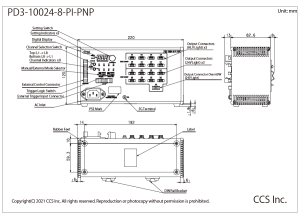

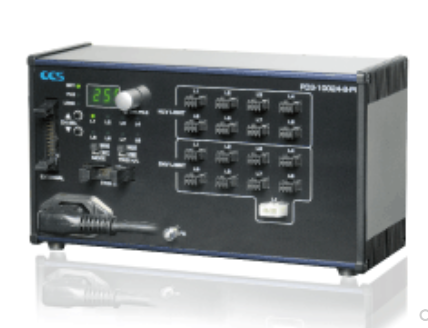

Light Units with 24 VDC input, HLV3/HLV2 series (Spot Light) Total for 8 channels: 95 W (EL connector: one 95 W connector)
通道数
8 channels
发光方式
Constant/Strobe lighting
驱动方式
24V LIGHT connectors: Constant-voltage system, HLV LIGHT connectors: Constant-current system
调光方式
24V LIGHT connectors: PWM control and lighting time control, HLV LIGHT connectors: Variable-current control
PWN频率
125 kHz
输入电压
100 to 240 VAC (+10% -15%)
频率
50/60 Hz
消耗功率
130 VA
输出电压
24 VDC
输出电流
Total for 8 channels: 3.95 A
涌入电流(typ)
15 A (at 100 VAC), 30 A (at 200 VAC) from a cold start
调光
Manual: 256-step using the front setting switch External: 8-bit input (B0 to B7), write pulse (BRTWR), and channel selection (CHSEL0 to CHSEL2)
错误检测显示
Digital display on the front-panel; OCP: Overcurrent error, EFN: Fan Stop Error, and EID: ID error (HLV3/HLV2-series Spot Lights only)
错误检测输出
NPN transister output to the External control connector pins between 19(OC) and 20(OE); open for normal operation, closed for overcurrent detection.
过电流保护
Operates at 107% of rated output current or higher. Reset by pressing operation setting switch for at least 1 second or by cycling the power supply. *Do not intentionally short-circuit the positive and negative output terminals.
输出端口
SMP-03V-BC x 16, ELR-02V x 1
外部控制端口
Trigger input: MIL connector (MIL-C-83503 compliant), 10 pins For setting the light intensity/mode: MIL connector (MIL-C-83503 compliant), 20 pins
适合规格
CE, UKCA, RoHS
使用温湿度
Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度
Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式
强制冷却
重量
1,500 g
材质
Aluminium, ABS
附属品
2m long 3-pin power cord with ground terminal x1 Base Brackets x1 set Instruction Guide x1
