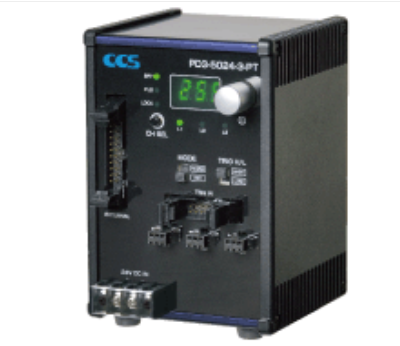

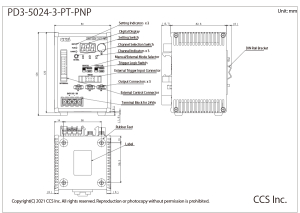

Light Units with 24 VDC input Total for 3 channels: 48 W
通道数
3 channels
发光方式
Constant/Strobe lighting
驱动方式
Constant lighting
调光方式
PWM control, Lighting time control
PWN频率
125 kHz
输入电压
24 VDC (21.6 to 26.4 V)
频率
50/60 Hz
消耗功率
52 W max.
输出电压
24 VDC
输出电流
Total for 3 channels: 1.9 A
调光
Manual: 256-step using the front setting switch External: 8-bit input (B0 to B7), write pulse (BRTWR), and channel selection (CHSEL0 to CHSEL2)
错误检测显示
OCP is displayed on the digital display
错误检测输出
NPN transister output to the External control connector pins between 19(OC) and 20(OE); open for normal operation, closed for overcurrent detection.
过电流保护
Operates at 107% of rated output current or higher. Reset by pressing operation setting switch for at least 1 second or by cycling the power supply. *Do not intentionally short-circuit the positive and negative output terminals.
输出端口
SMP-03V-BC x 3
外部控制端口
Trigger input: MIL connector (MIL-C-83503 compliant), 10 pins For setting the light intensity/mode: MIL connector (MIL-C-83503 compliant), 20 pins
适合规格
CE, UKCA, RoHS
使用温湿度
Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度
Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
