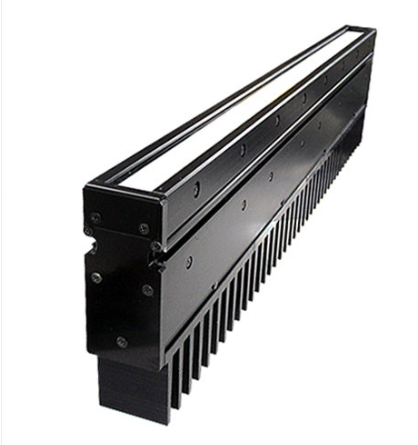

CCS希希爱视 LN-HA-nSW CCS × AItec | LED发光颜色 | White |
|---|
| 外壳材质 | Aluminum alloy |
|---|
| 适合规格 | CE, UKCA, RoHS, IEC 62471 (Low risk) |
|---|
| 使用温湿度 | Temperature: 0 to 40℃, Humidity: 30% to 85%RH (with no condensation) |
|---|
| 保存温湿度 | Temperature: 0 to 50℃, Humidity: 30% to 85%RH (with no condensation) |
|---|
| 冷却方式 | Natural air-cooling |
|---|
Dimensions

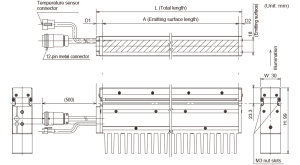

Please check the download document for details of the external dimensions.
Please check specifications for size details. Specifications| Model name | LxWxH (mm) | Emitting surface length
(Dimension A)*1
(mm) | D1 | D2 | Weight
(kg) | Number of LED blocks*2 | Power consumption
(Including for fans)
(W) | Required light cable connection | Applicable Control Units |
|---|
| LN-HA-100SW | 115x30x99 | 100 | 10 | 5 | 0.45 | 1 | 20 | 12-pin metal connector、
5-pin temperature sensor connector | PSCC-J1A-30048-0402 | | LN-HA-200SW | 215x30x99 | 200 | 10 | 5 | 0.95 | 2 | 39 | | LN-HA-300SW | 315x30x99 | 300 | 10 | 5 | 1.35 | 3 | 58 | | LN-HA-400SW | 415x30x99 | 400 | 10 | 5 | 1.75 | 4 | 77 | | LN-HA-500SW | 515x30x99 | 500 | 10 | 5 | 2.15 | 5 | 96 | | LN-HA-600SW | 615x30x99 | 600 | 10 | 5 | 2.55 | 6 | 116 | | LN-HA-700SW | 727x30x99 | 700 | 16 | 11 | 3 | 7 | 135 | 12-pin metal connector x 2pcs.、
5-pin temperature sensor connector | | LN-HA-800SW | 827x30x99 | 800 | 16 | 11 | 3.4 | 8 | 154 | | LN-HA-900SW | 927x30x99 | 900 | 16 | 11 | 3.8 | 9 | 173 | | LN-HA-1000SW | 1,027x30x99 | 1,000 | 16 | 11 | 4.2 | 10 | 192 |
| Model name*1 | LxWxH (mm) | Emitting surface length
(Dimension A)*2
(mm) | D1 | D2 | Weight
(kg) | Number of LED blocks*3 | Power consumption
(Including for fans)
(W) | Required light cable connection | Applicable Control Units |
|---|
| LN-HA-1100SW | 1,127x30x99 | 1,100 | 16 | 11 | 4.6 | 11 | 212 | 12-pin metal connector? x 2pcs.
5-pin temperature sensor connector | PSCC-J1A-30048-0402 | | LN-HA-1200SW | 1,227x30x99 | 1,200 | 16 | 11 | 5.0 | 12 | 231 | | LN-HA-1300SW | 1,331x30x99 | 1,300 | 20 | 11 | 5.4 | 13 | 250 | 37-pin metal connector | PSCC-J1A-60048-0402 | | LN-HA-1400SW | 1,431x30x99 | 1,400 | 20 | 11 | 5.8 | 14 | 269 | | LN-HA-1500SW | 1,531x30x99 | 1,500 | 20 | 11 | 6.2 | 15 | 288 | | LN-HA-1600SW | 1,631x30x99 | 1,600 | 20 | 11 | 6.6 | 16 | 308 | 37-pin metal connector x 2pcs. | | LN-HA-1700SW | 1,731x30x99 | 1,700 | 20 | 11 | 7.0 | 17 | 327 | | LN-HA-1800SW | 1,831x30x99 | 1,800 | 20 | 11 | 7.4 | 18 | 346 | | LN-HA-1900SW | 1,931x30x99 | 1,900 | 20 | 11 | 7.8 | 19 | 365 | | LN-HA-2000SW | 2,031x30x99 | 2,000 | 20 | 11 | 8.2 | 20 | 384 |
| Model name*1 | LxWxH (mm) | Emitting surface length
(Dimension A)*2
(mm) | D1 | D2 | Weight
(kg) | Number of LED blocks*3 | Power consumption
(Including for fans)
(W) | Required light cable connection | Applicable Control Units |
|---|
| LN-HA-2100SW | 2,131x30x99 | 2,100 | 20 | 11 | 8.6 | 21 | 404 | 37-pin metal connector x 2pcs. | PSCC-J1A-60048-0402 | | LN-HA-2200SW | 2,231x30x99 | 2,200 | 20 | 11 | 9.0 | 22 | 423 | | LN-HA-2300SW | 2,331x30x99 | 2,300 | 20 | 11 | 9.4 | 23 | 442 | | LN-HA-2400SW | 2,431x30x99 | 2,400 | 20 | 11 | 9.8 | 24 | 461 | | LN-HA-2500SW | 2,531x30x99 | 2,500 | 20 | 11 | 10.2 | 25 | 480 | | LN-HA-2600SW | 2,631x30x99 | 2,600 | 20 | 11 | 10.6 | 26 | 500 | 37-pin metal connector x 2pcs. | PSCC-J1A-10C48-0402 | | LN-HA-2700SW | 2,731x30x99 | 2,700 | 20 | 11 | 11.0 | 27 | 519 | | LN-HA-2800SW | 2,831x30x99 | 2,800 | 20 | 11 | 11.4 | 28 | 538 | | LN-HA-2900SW | 2,931x30x99 | 2,900 | 20 | 11 | 11.8 | 29 | 557 | | LN-HA-3000SW | 3,031x30x99 | 3,000 | 20 | 11 | 12.2 | 30 | 576 |
*1 The available emitting surface lengths are in units of 100 mm. *2 An LED block is a batch of LEDs implemented on the same circuit. This is also the minimum scope of settings for light intensity and alarm on the dedicated power supply, To repair the Light Unit , customers can selectively replace the Implementation Board including the LED blocks. If this replacement is required, please contact your local sales representative.
