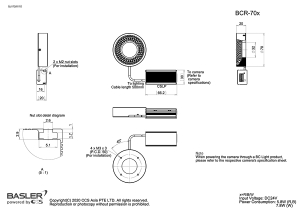

Outer diameter 70 mm x Inner diameter 32 mm x Height 20 mm
输入电压
24 VDC ( ± 10% )
消耗功率
Red 5.8 W, Blue 5.8 W, White 7.8 W
适合规格
RoHS, CE, UKCA
使用温湿度
Temperature: 0 to 40℃ (Light intensity may vary due to the change in ambient temperature) Temperature: 0 to 40℃, Humidity: 20% to 85%RH (with no condensation) (Should not be frozen, condensed or exposed to the rapid change in temperature)
保存温湿度
Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
冷却方式
Natural air-cooling
重量
160 g
附属品
使用说明书
Connectors
Controller part: Applicable Terminal Block Connector: Wurth Elektronik WR-TBL series 691381000006) Wurth Elektronik WR-TBL series 691382010006
Drive method
Constant-voltage system
Intensity control method
PWM control
PWM frequency
100 kHz
Cable length
Light cable: 500 mm Camera cable: 3 m max.
CE marking
EMC Standard: Conforms to EN61000-6:2019、EN61000-6-:2007+A1:2011
