Features / PWM Frequency

PD3-10024-8 series high-frequency digital control unit with PWM frequency 500kHz.
External control through
parallel communication (PD3-10024-8-PI-500),
Ethernet communication (TCP/IP UDP/IP) (PD3-10024-8-EI-500),
and EIA-485 communication (PD3-10024-8-SI-500),
external trigger signal communication NPN input model.

This is a made-to-order product. For queries and details, contact your CCS sales representative.

Lineup of Models with 500 kHz PWM Frequency (Custom Order Products)

When selecting a digital power supply, consider using the higher frequency type. Power supplies with a PWM frequency of 500 kHz can be made to order. Contact our local sales office for details.

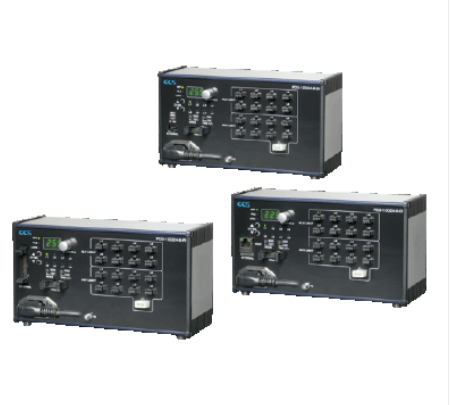

Introducing High Frequency Power Supplies (Custom Order) PD3-10024-8 Series

• PWM Dimmer Control (500 kHz)

• 95 W Capacity (EL Connector: 1 Channel)

• AC Input

• 3 types of external control

  • Parallel communication

  • Ethernet communication (TCP/IP UDP/IP)

  • EIA-485 communication

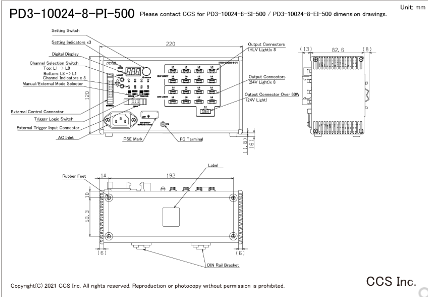

PD3-10024-8-PI-500
(Parallel type)

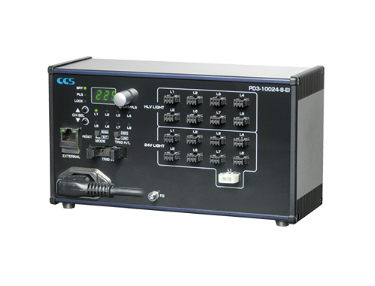

PD3-10024-8-EI-500
(Ethernet type) (TCP/IP UDP/IP)

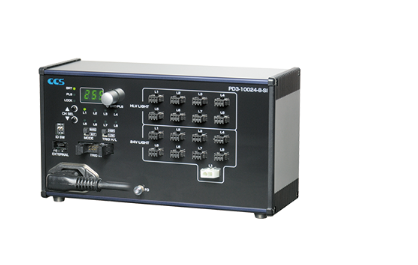

PD3-10024-8-SI-500
(EIA-485 type)

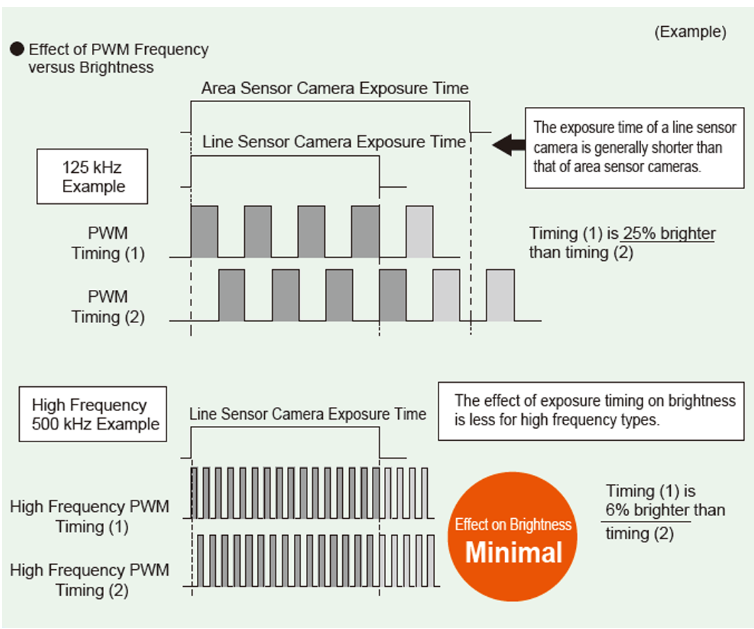

Effect of PWM Frequency versus Brightness
