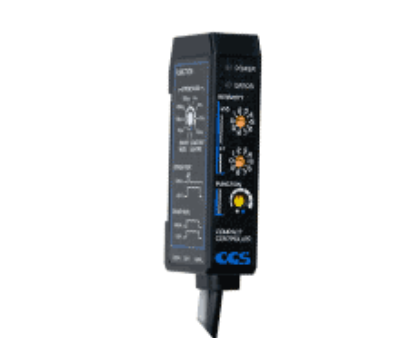

CCS希希爱视 CC-ST-1024 紧凑型控制器

CCS希希爱视 CC-ST-1024 紧凑型控制器

品牌 CCS希希爱视
型号 CC-ST-1024
产品详情


CCS希希爱视   CC-ST-1024   紧凑型控制器

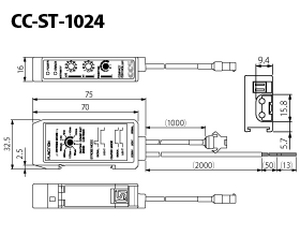

外观尺寸W 16 mm x D 32.5 mm x H 75 mm
适合光源(输出定额)24 V, 10 W (rating)
通道数1
驱动方式Constant lighting
调光方式PWM control, Lighting time control
PWN频率100 kHz
输出电压24VDC
输出电流0.42 A
外壳材质ABS
过电流保护Overcurrent protection is provided by fuse interruption.
适合规格CE, UKCA, RoHS
使用温湿度Temperature: 0 to 40℃, Humidity: 20 to 85%RH
(No condensation)
保存温湿度Temperature: -20 to 60℃, Humidity: 20 to 85%RH
(No condensation)
冷却方式Natural air-cooling
重量80 g max.
附属品Instruction Guide x 1, Flat-blade screwdriver x 1
