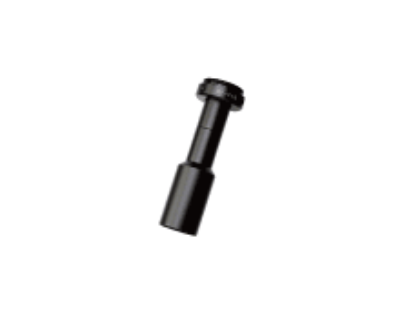

CCS希希爱视 SE-110ST10 远心镜头

CCS希希爱视 SE-110ST10 远心镜头

品牌 CCS希希爱视
型号 SE-110ST10
产品详情

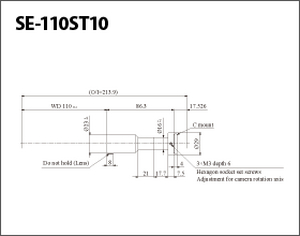

CCS希希爱视   SE-110ST10   远心镜头

外观尺寸Outer diameter 23 mm
光学倍率x1.0
WD110.0±2 mm
景深1.6 mm
光学分辨率13.4 μm
NA0.025
有效F值(Fe)19.9
TV失真-0.05%
物像间距离213.9 mm
相机支架C mount
最大适用图像传感器尺寸1/1.8 inch
视野(图像传感器尺寸)
适合规格RoHS
使用温湿度Temperature: 0 to 40℃, Humidity: 85%RH
(with no condensation)
保存温湿度Temperature: -20 to 60℃ (with no condensation)
重量51 g max.
附属品使用说明书
备注Straight type.
The depth of field is obtained with 40 μm permissible circle of confusion.
The resolving power was obtained at a wavelength of 550 nm.
These specifications are numeric values based on optical design.
Actual values will vary with physical factors such as the assembly accuracy.
