CCS希希爱视 SE-18VM6 微距镜头

CCS希希爱视 SE-18VM6 微距镜头

品牌 CCS希希爱视
型号 SE-18VM6
产品详情

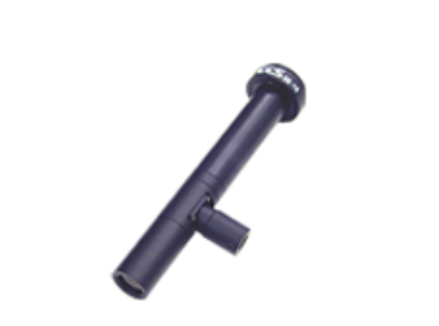

CCS希希爱视   SE-18VM6   微距镜头

光学倍率6.0 x
WD108 mm
景深140 μm
光学分辨率7.1 μm
NA0.057
有效F值(Fe)63.9
物像间距离256 mm
镜头外径(镜筒)φ18
相机支架C mount
最大适用图像传感器尺寸2/3 inch
视野(图像传感器尺寸)
适合规格RoHS
使用温湿度Temperature: 0 to 40°C, Humidity: 20 to 85%RH (no condensation)
保存温湿度Temperature: -20 to 60°C, Humidity: 20 to 85%RH (no condensation)
重量65 g max.
附属品使用说明书
备注Coaxial type.
The depth of field is obtained with 40 μm permissible circle of confusion.
The resolving power was obtained at a wavelength of 550 nm.
These specifications are numeric values based on optical design.
Actual values will vary with physical factors such as the assembly accuracy.
